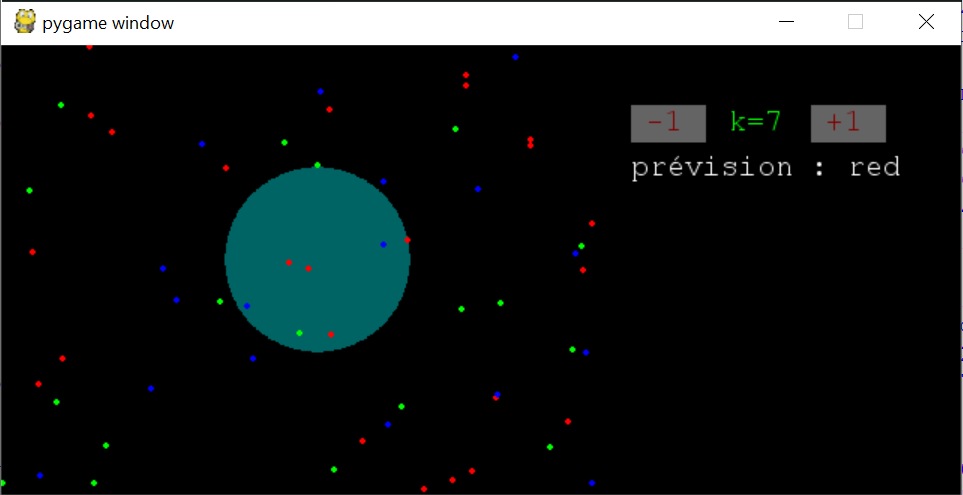

Voici le code permettant d'obtenir cela :
from random import *
from math import sqrt
from pygame import *
def generer_groupe():
g=[]
for a in range(randint(15,30)):
g.append([randint(0,400),randint(0,300),"red"])
for a in range(randint(15,30)):
g.append([randint(0,400),randint(0,300),"green"])
for a in range(randint(15,30)):
g.append([randint(0,400),randint(0,300),"blue"])
return g
s=generer_groupe()
def distance2(x1,y1,x2,y2):
return (x1-x2)**2+(y1-y2)**2
def liste_distance_groupe(x,y,groupe):
l=[]
for a in groupe:
l.append([distance2(x,y,a[0],a[1]),a[2]])
return l
d=liste_distance_groupe(100,100,s)
def k_proches_voisins(k,liste):
liste_classee=sorted(liste, key=lambda x: x[0])
return liste_classee[:k]
def prediction(x,y,k,groupe):
global t
d=liste_distance_groupe(x,y,groupe)
t=k_proches_voisins(k,d)
red=0
green=0
for a in t:
if a[1]=="red":
red+=1
if a[1]=="green":
green+=1
blue=k - red -green
if red > green and red > blue:
return "red"
elif green > red and green > blue:
return "green"
elif blue > red and blue > green:
return "blue"
else:
return "pas de prediction"
#variables pygame
width = 640
height = 300
init()
display.set_caption('Algorithme KNN')
mafont = font.SysFont("monospace", 20)
screen = display.set_mode((width, height))
clock = time.Clock()
running = True
x=0
y=0
r=0
p=""
#k=int(input("k= "))
k=7
while running:
draw.rect(screen,(0,0,0),Rect(0,0,640,400))
draw.circle(screen, (0,100,100),(x,y), r)
red = (155,0,0)
green = (0, 155,0)
blue= (0, 0, 155)
for a in s:
if a[2]=="red":
#screen.set_at((a[0], a[1]), (0,0,0))
draw.circle(screen, (255,0,0),(a[0], a[1]), 2)
elif a[2]=="blue":
#screen.set_at((a[0], a[1]), (0,0,0))
draw.circle(screen, (0,0,255),(a[0], a[1]), 2)
else:
#screen.set_at((a[0], a[1]), (255,255,255))
draw.circle(screen, (0,255,0),(a[0], a[1]), 2)
for events in event.get():
if events.type == QUIT:
running = False
quit()
if events.type == MOUSEBUTTONDOWN:
if events.button == 1: #Si clic gauche
#On change les coordonnées du perso
if 420 < events.pos[0] < 470 and 40 < events.pos[1] < 65 and k>1:
k-=1
r=0
if 540 < events.pos[0] < 590 and 40 < events.pos[1] < 65:
k+=1
r=0
if events.pos[0] < 400:
x=events.pos[0]
y=events.pos[1]
p=prediction(x,y,k,s)
r=int(sqrt(t[k-1][0])+1)
text = mafont.render("k="+str(k),True,(0, 255, 0))
screen.blit(text,(485, 40))
draw.rect(screen,(100,100,100),Rect(420,40,50,25))
text2 = mafont.render("-1",True,(128, 0, 0))
screen.blit(text2,(430, 40))
draw.rect(screen,(100,100,100),Rect(540,40,50,25))
text3 = mafont.render("+1",True,(128, 0, 0))
screen.blit(text3,(550, 40))
text4 = mafont.render("prédiction : "+p,True,(255, 255, 255))
screen.blit(text4,(420, 70))
display.flip()Analyser et tester ce code.
